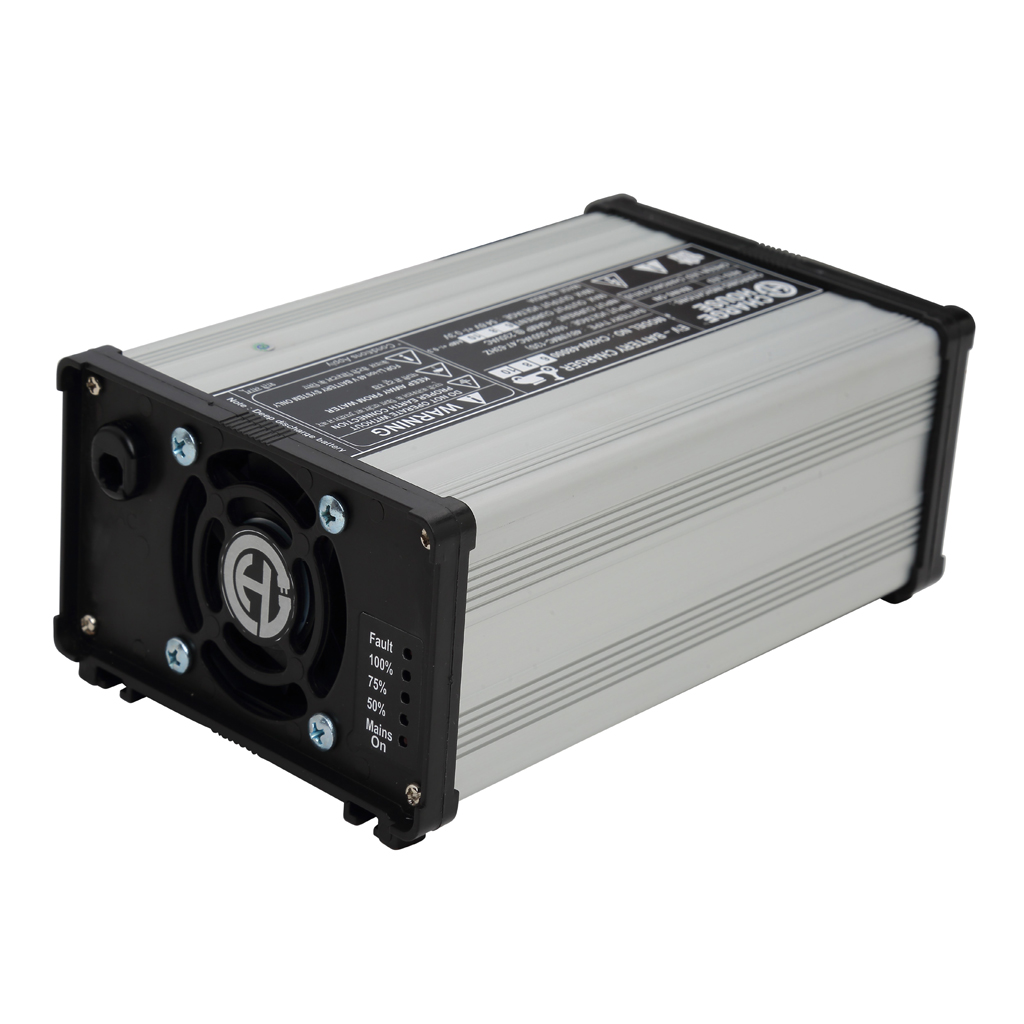

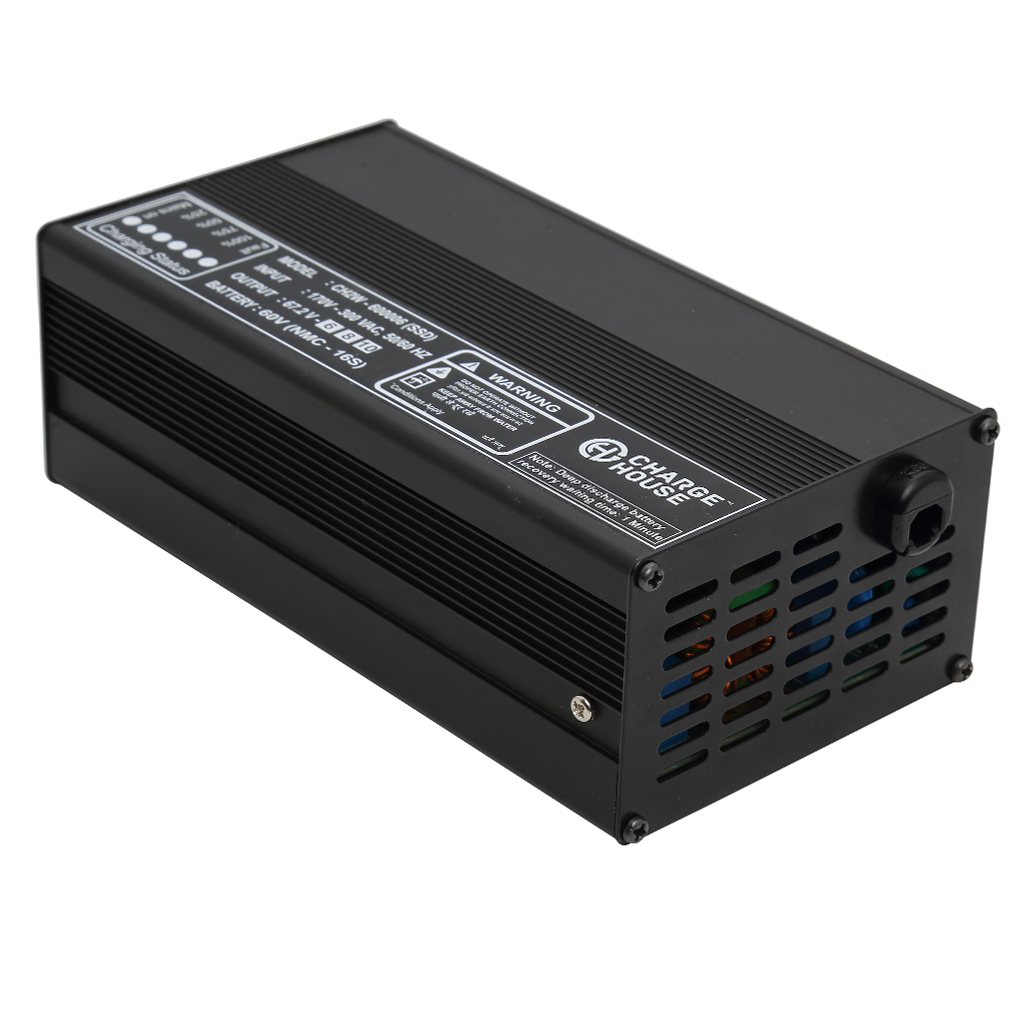

CH2W-900W Charger
As Contributors to the progressive EV charging manufacturing, we are on a mission to set industry standards with advanced solutions. Our commitment to customer-centric design solutions and intensive research and development in EV and PLCs technologies leading a way for engineering a future of innovation and technical excellence.
| CH2W-480010 | CH2W-600010 | CH2W-720010 | |
| Battery System | 48V Battery | 60V Battery | 72V Battery |
| Output Voltage Range | 35V – 60V | 45V – 73V | 55V – 88V |
| Output Current | 10 Amp | 10 Amp | 8 Amp – 10 Amp |
| Note: Output voltage & Current can be adjusted as per customer requirements | |||
| Output Power | 600W – 900 W | ||
| Input Voltage Range | 170VAC-300VAC, 230VAC Nominal Voltage | ||
| Efficiency | >85% | ||
| Dimensions | L=200, W=123mm, H=73mm | ||
| Weight | ~ 1.5Kg | ||
| CAN 2.0 | Optional | ||
| Battery Compatibility | Lithium-Ion (NMC/LFP) | ||
